Case study 03  Quick peek  2 min read

Claims Adjuster Copilot

Designing a human-in-the-loop claims experience where AI prepares recommendations, but a licensed adjuster reviews, edits, escalates and approves every consequential decision.

Concept / POC  Regulated AI  Human-in-the-loop

The AI-proposed decision, the human decision and the audit record: a $7,905 payout recommendation at 76% confidence, above an illustrative 70% floor, with fraud risk low, coverage confirmed and three cited sources; the adjuster’s choice to approve, edit the amount or escalate, with nothing paid until they approve; the motif AI prepares, human decides, system executes, audit records; and an audit trail where the adjuster removed a duplicate line, approved $7,265 and the system then paid and logged it
Role
Product / UX Design
Users
Claims adjusters, senior adjusters / SIU, compliance reviewers
Domain
Insurance claims
Scope
AI-assisted triage, recommendation review, escalation and audit
Status
Concept / working prototype

The problem

Claims teams need speed without giving up accountability.

Adjusters work through a mix of straightforward claims, ambiguous cases, potential fraud, evidence gaps, payout decisions and exceptions. AI can help prepare a recommendation, but claims decisions carry financial, regulatory and customer consequences.

A claims desk handles
Straightforward claims
Ambiguous cases
Potential fraud
Evidence gaps
Payout decisions
Exceptions

The design problem is not simply: Can AI calculate a recommendation?

It isHow does a human understand, challenge, change and ultimately own that recommendation before anything happens?

Why this is high-stakes

A mistake here moves real money

  • Financial

    A payout moves real money.

  • Regulatory

    Claims decisions need to be explainable, with a record of who decided and why.

  • Customer

    A wrong amount or a delay lands on a policyholder.

The core design question

How much autonomy should an AI agent have when a mistake can move real money?

Thesis AI can prepare the decision. A human remains accountable for the outcome.

My role

A self-initiated concept, grounded in insurance experience

This was a self-initiated concept project created to explore human-in-the-loop interaction patterns in a regulated insurance workflow. I defined the product model, synthesized HITL and AI UX patterns, designed the end-to-end interaction flow, created the key screens and built a working prototype around review, edit, escalation and audit.

The insurance context draws on my broader enterprise insurance experience, but this claims product itself was not a client or production project.

What grounds it

  • My experience designing insurance and brokerage products
  • Secondary research on human-in-the-loop AI, approval gates, trust and transparency, escalation and auditability
  • Pattern synthesis: general AI UX patterns translated into a claims workflow

What I designed

  • The product model and the human-in-the-loop strategy
  • The end-to-end interaction flow
  • The key screens: queue, review, edit, rationale, escalation, audit
  • A working prototype with synthetic claim data

Self-initiated concept / POC. This project explores AI UX patterns in a claims context informed by my broader insurance experience. It was not a client deployment.

Key insight

The review experience matters more than the recommendation itself.

The adjuster has to be able to

  • See the recommendation
  • Understand the evidence
  • Inspect the rationale behind it
  • Change the amount
  • Escalate uncertainty
  • See what will execute
  • Leave an audit record

If any is missingthe system is not truly human-in-the-loop.

Pivotal decision

I chose a workflow instead of an autonomous agent.

In a high-stakes domain, the goal is not maximum autonomy. The product should reduce cognitive and operational load while preserving human judgment, intervention, accountability and traceability. Every consequential action passes through an explicit human decision point.

What the workflow preserves
Human judgment
Intervention
Accountability
Traceability

Case 02 · Enterprise Tool Governance

Bounded autonomy for reversible actions

  • AI may act on low-risk, reversible requests
  • Admin-defined limits + undo

Case 03 · Claims Adjuster Copilot

Human approval for consequential decisions

  • AI prepares the recommendation
  • A licensed adjuster decides before execution

Human-in-the-loop flow

Eight stages, one approval gate

Ingest → Analyze → Recommend → Review → Edit / Escalate → Approve → Execute → Audit. Each stage has one owner: the AI prepares, a person decides, and the system executes only what was approved.

  1. AI preparesReads the claim file, checks coverage and evidence, and drafts a recommendation with its rationale.

    1. Ingest
    2. Analyze
    3. Recommend
  2. Human reviews and decidesInspects, compares, questions, edits or escalates, then approves.

    1. Review
    2. Edit / Escalate
    3. Approve
  3. Approval gate

    System executesOnly the approved decision, and only after approval.

    1. Execute
  4. Audit persistsThe AI proposal, every human change, who, when, why and the final action.

    1. Audit

The AI prepares the case. The human owns the decision.

The core interaction model

Propose → Review → Commit

  1. 01

    Propose

    The AI assembles:

    • A payout recommendation
    • Confidence
    • Fraud and risk signals
    • Supporting evidence
    • The recommendation rationale
  2. 02

    Review

    The adjuster can:

    • Inspect
    • Compare
    • Question
    • Edit
    • Escalate
  3. 03

    Approval gate

    Commit

    Nothing executes until the adjuster explicitly approves.

Propose → Review → Commit is an established human-in-the-loop pattern, not something this project invented. The work here was applying it to a claims decision.

Key design moments

Four moments that carry the story

Screens are recreated as concept UI. All claim IDs, names, payouts, confidence scores, evidence and policy references are synthetic, and the 70% confidence floor is illustrative.

  1. AI prepares
  2. Human decides
  3. System executes
  4. Audit records
A

Claim review card

Problem
A recommendation without evidence becomes a black box.
Decision
Show payout, confidence, fraud risk, evidence and the recommendation rationale before any execution.
Why
The adjuster sees both the recommendation and the basis for it before acting.
  1. AI prepares
  2. Human decides (this screen)
  3. System executes
  4. Audit records

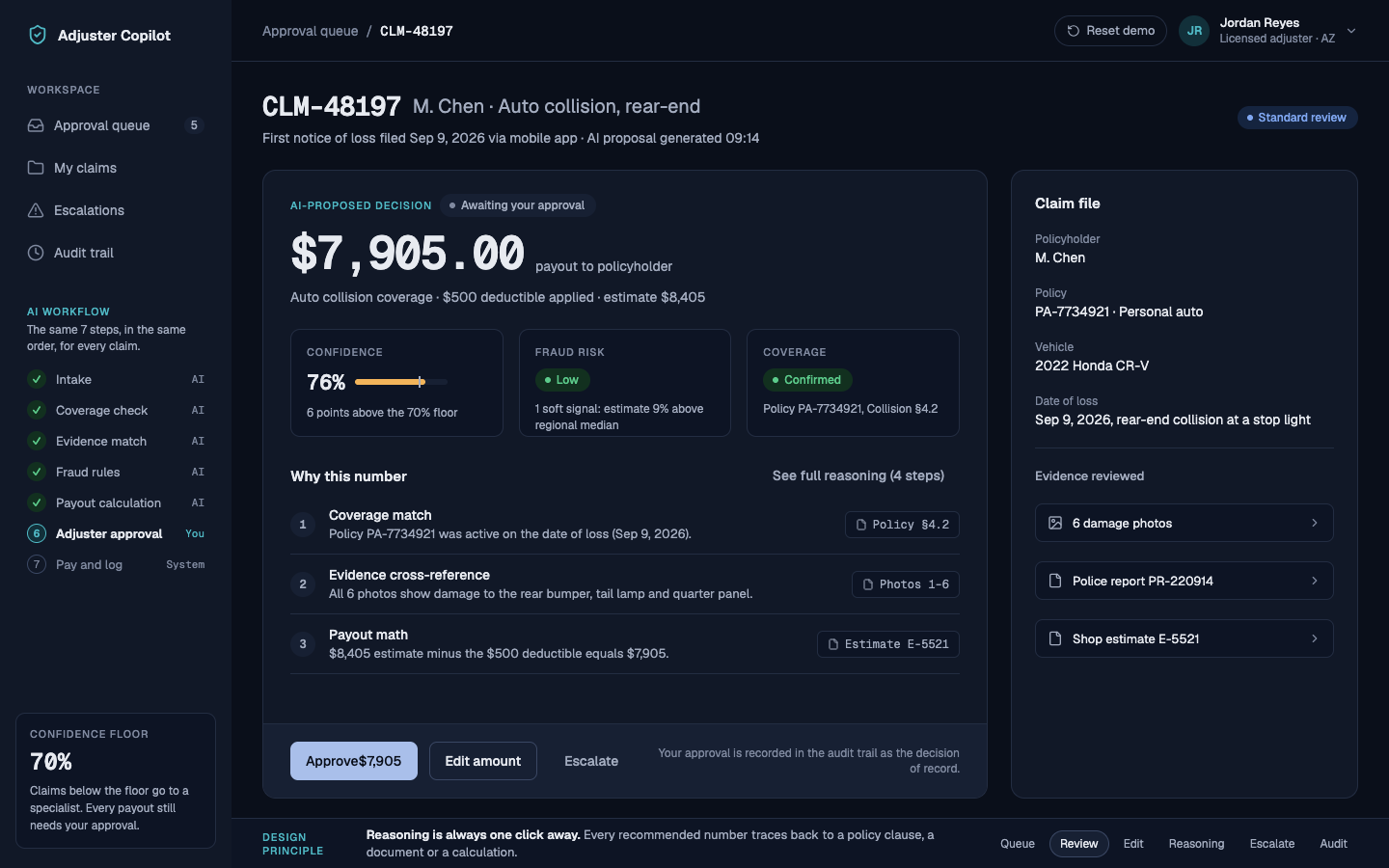

Synthetic claim data · Concept UI. Claim review card for an auto collision claim: the AI-proposed payout of $7,905.00 awaiting the adjuster’s approval, with three tiles for confidence at 76%, six points above the 70% floor, fraud risk low with one soft signal, and coverage confirmed with the policy clause. Below, the recommendation rationale in three steps, each citing its source: the policy clause, the photos and police report, and the shop estimate. Buttons to approve $7,905, edit the amount or escalate, and a note that nothing is paid until the adjuster approves. On wide screens, a side panel shows the claim file and the supporting evidence

The rule

Nothing is approved automatically,
and nothing is approved blind.

B

Edit in place

Problem
Approve/reject is too coarse for real professional judgment.
Decision
Allow the adjuster to revise the AI recommendation and record why.
Why
Human judgment becomes part of the workflow instead of an exception outside it.
  1. AI prepares
  2. Human decides (this screen)
  3. System executes
  4. Audit records
Synthetic claim data · Concept UI. Edit in place: the shop estimate as seven lines with checkboxes. Line 5, a paint blend for the rear quarter panel, is flagged as the same as line 4 and has been cleared, so it is struck through. The totals update to a covered estimate of $7,765.00, minus the $500 deductible, for an adjusted payout of $7,265.00. A side panel shows the AI proposal of $7,905.00 struck through, the adjusted payout, a change of −$640.00, the reason category Duplicate line item and a written reason, a note that the change is saved to the audit trail with the adjuster’s name and time, and a Save and approve button
C

Escalation

Problem
Low-confidence or ambiguous cases should not be forced into a binary decision.
Decision
Provide escalation to a senior adjuster or SIU, with context attached.
Why
Uncertainty becomes a designed path rather than a failure state.
  1. AI prepares
  2. Human decides (this screen)
  3. System executes
  4. Audit records
Synthetic claim data · Concept UI. Escalation of a water damage claim at 54% confidence, below the floor, with elevated fraud risk. It lists why the claim is being escalated: the confidence gap, a coverage limit raised six days before the loss, two prior water claims and an invoice above the regional median. The adjuster chooses where to send it, with the Special Investigations Unit recommended over a senior adjuster, sets priority to High and writes a note. A side panel shows the context package attached automatically: the recommendation rationale, claim history, submitted evidence and the note, and says the payout stays on hold until the specialist decides
D

Audit trail

Problem
High-stakes decisions need accountability after the fact.
Decision
Record the original AI proposal, human changes, actor, time, rationale and final action.
Why
The organization can reconstruct who decided what and why.
  1. AI prepares
  2. Human decides
  3. System executes
  4. Audit records (this screen)
Synthetic claim data · Concept UI. Audit trail for the auto collision claim, with entries that cannot be edited or removed, filterable by actor. Seven timestamped entries, each naming its actor: the AI received the claim and generated a $7,905 proposal at 76% confidence; the system routed it to Standard review while still requiring an adjuster’s approval; the adjuster opened the claim, edited the payout to $7,265 because of a duplicate line item, and approved $7,265 as the decision of record; then the system released and logged the payment, only after the approval. A side panel shows the decision of record: AI proposed $7,905.00, human change −$640.00, final payout $7,265.00, decided by the licensed adjuster, no escalations, AI confidence 76%
Working prototype

Explore the HITL prototype

The prototype demonstrates the interaction model—review, edit, escalation and audit—with synthetic claim data. It does not connect to a production claims platform or live AI model.

  1. Open the queue
  2. Review a recommendation
  3. Edit the payout
  4. Inspect the rationale
  5. Escalate
  6. View the audit trail
Explore the HITL prototype (opens in a new tab) Opens in a new tab  best on a desktop screen

POC learning

What the concept shows, and what it doesn’t

No business metrics are claimed. This was not tested with claims adjusters.

Demonstrated in the concept

POC learning

  • Demonstrated a complete human-in-the-loop claims decision flow
  • Converted abstract AI trust principles into concrete interactions
  • Showed how editability, escalation and auditability can coexist in one workflow
  • Created a portfolio-backed example of regulated AI UX thinking

Not yet validated

What remains unvalidated

  • Adjuster usability
  • Confidence presentation
  • Escalation thresholds
  • Time-to-decision impact
  • Override behavior
  • Real claims-model integration
